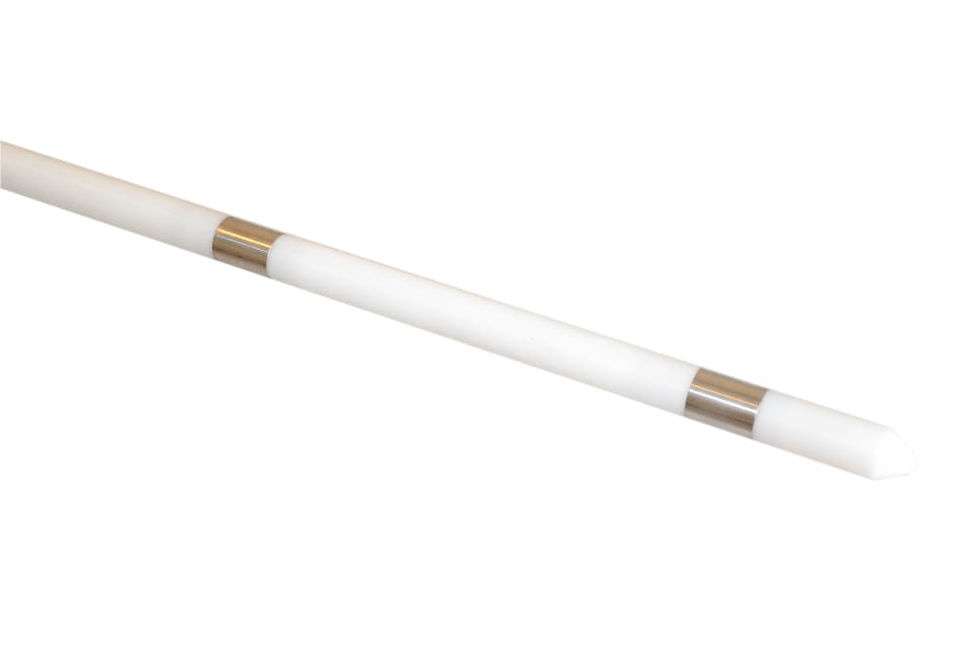

IP38: Induced Polarisation

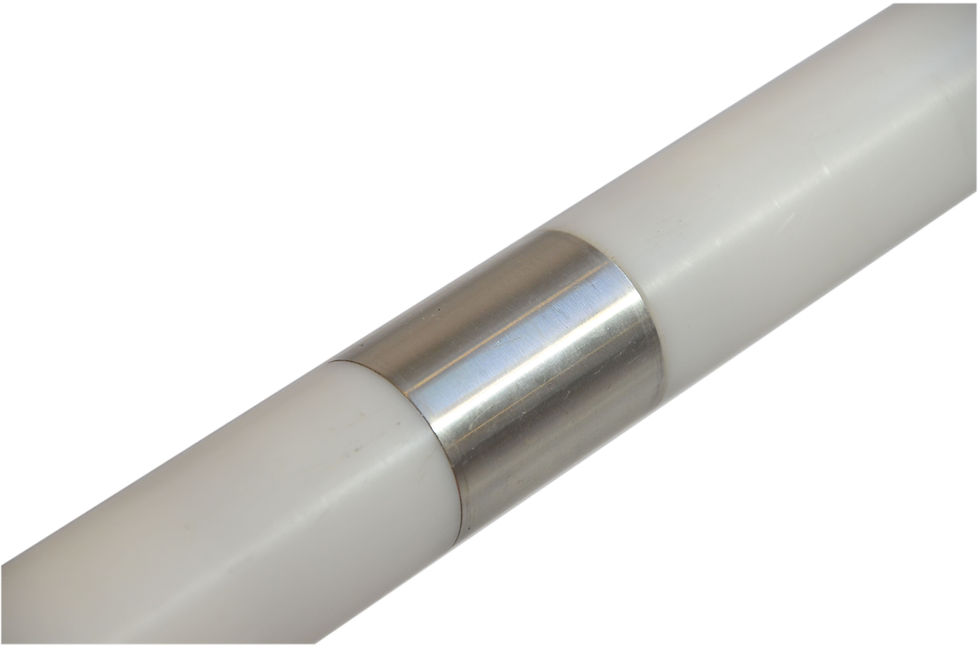

The formations surrounding the borehole are subjected to an alternative square-wave voltage applied via the upper and lower injection electrodes. Following each injection cycle, the resulting potential difference over a section of the formations is analysed as it decreases with time. The form of this decreases curve is related to the chargeability of the formations.
A high chargeability indicates that induced electrochemical potentials are able to develop within the formations as a result of ion transfer between pore fluids and semi-conductive metallic mineral grains present within the rocks.
The IP38 probe is particularly suitable for mining exploration in the context of a disseminated sulphide mineralisation. In the hydrogeological domain, it can also provide qualitative information about the permeability of potential aquifer horizons.
Contact us to get a quote or request more information.
![L'image contient notre sonde IP38, polarisation induite, convient pour exploration minière et hydrogéologie.](https://static.wixstatic.com/media/cadca1_f19ee3b864104677b3a0525ad9d261e5~mv2.png/v1/fill/w_448,h_400,al_c,lg_1,q_85,enc_auto/ip38-illustration.png)
IP38 SPECIFICATIONS
![Caractéristiques sonde IP38](https://static.wixstatic.com/media/cadca1_9e0ae29355e4488ba85b11849dc22b3e~mv2.png/v1/fill/w_74,h_86,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Capture%20d%E2%80%99e%CC%81cran%202020-11-02%20a%CC%80%2014_27_41_.png)
Technical Specifications
✓ Diameter : 38 mm
✓ Length : 2790 mm
✓ Max. Temp : 200 bar
✓ Pressure : 200 bar
![Paramètres sonde IP38](https://static.wixstatic.com/media/cadca1_3471e76dc50248ad980a994a3f61c7f8~mv2.png/v1/fill/w_74,h_86,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Capture%20d%E2%80%99e%CC%81cran%202020-11-02%20a%CC%80%2016_53_11_.png)
Sensors Parameters
✓ Measuring range : SPR 010,000 ohm.m
✓ Measuring range : IP ratio A/B (mV/V)
![Accesoires sonde IP38](https://static.wixstatic.com/media/cadca1_9975b4619c5c4f72b879cf725ce13ff7~mv2.png/v1/fill/w_86,h_77,al_c,q_85,usm_0.66_1.00_0.01,blur_3,enc_auto/Capture%20d%E2%80%99e%CC%81cran%202020-11-02%20a%CC%80%2014_31_20_.png)
Options And Accessories
✓ Gamma ray sensor: ø25 x 50 mm NaI(Tl) crystal
✓ Transport case
